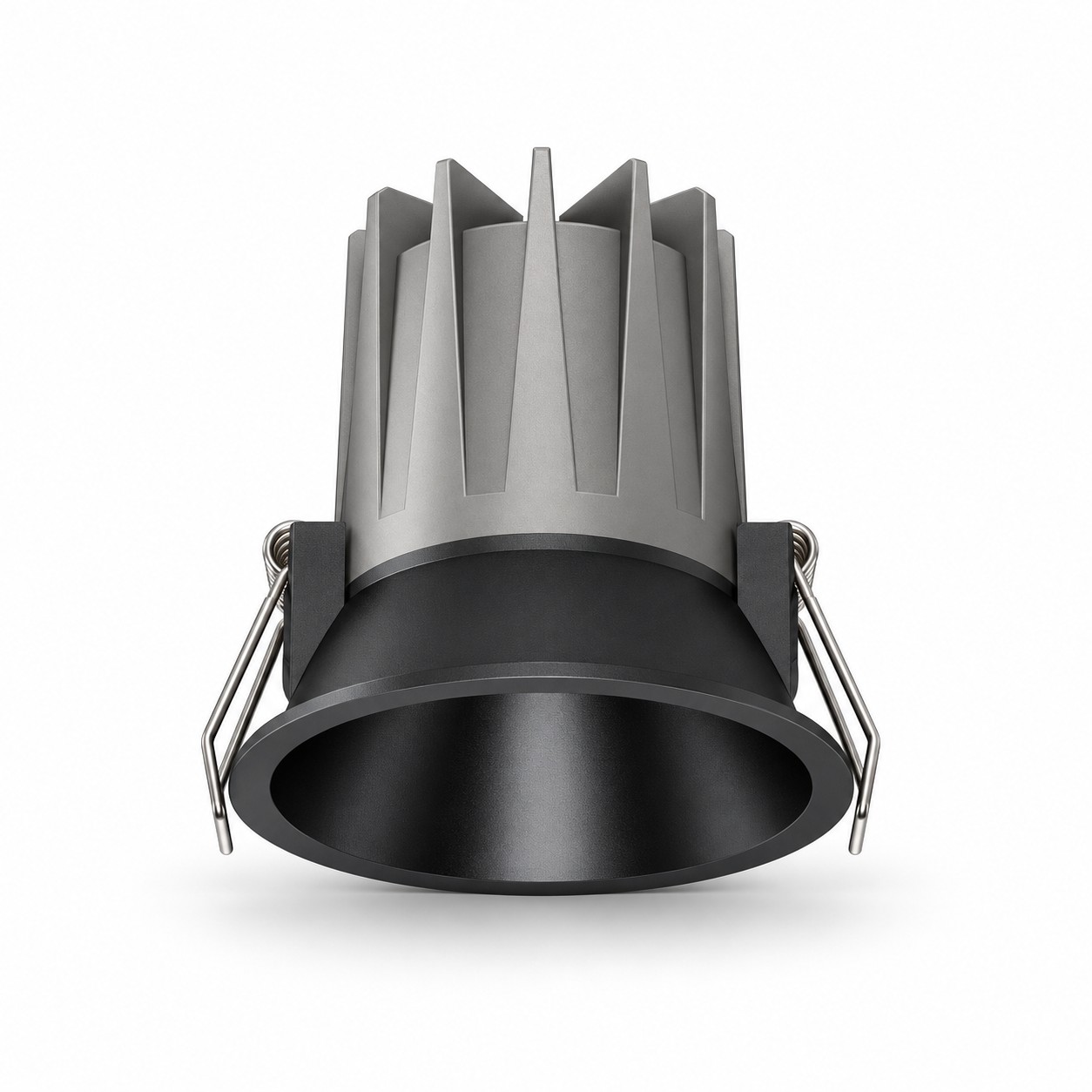

TSD011 Series Deep Recessed LED Downlight
The KONS TSD011 series features a deep reflector and a recessed light source for a discreet ceiling appearance. Four sizes and power options allow lighting designers to select suitable fixtures for accent lighting and wider illumination within the same product family.
The construction combines die-cast aluminium and PC components, with a finned heat sink and spring clips for recessed ceiling installation.

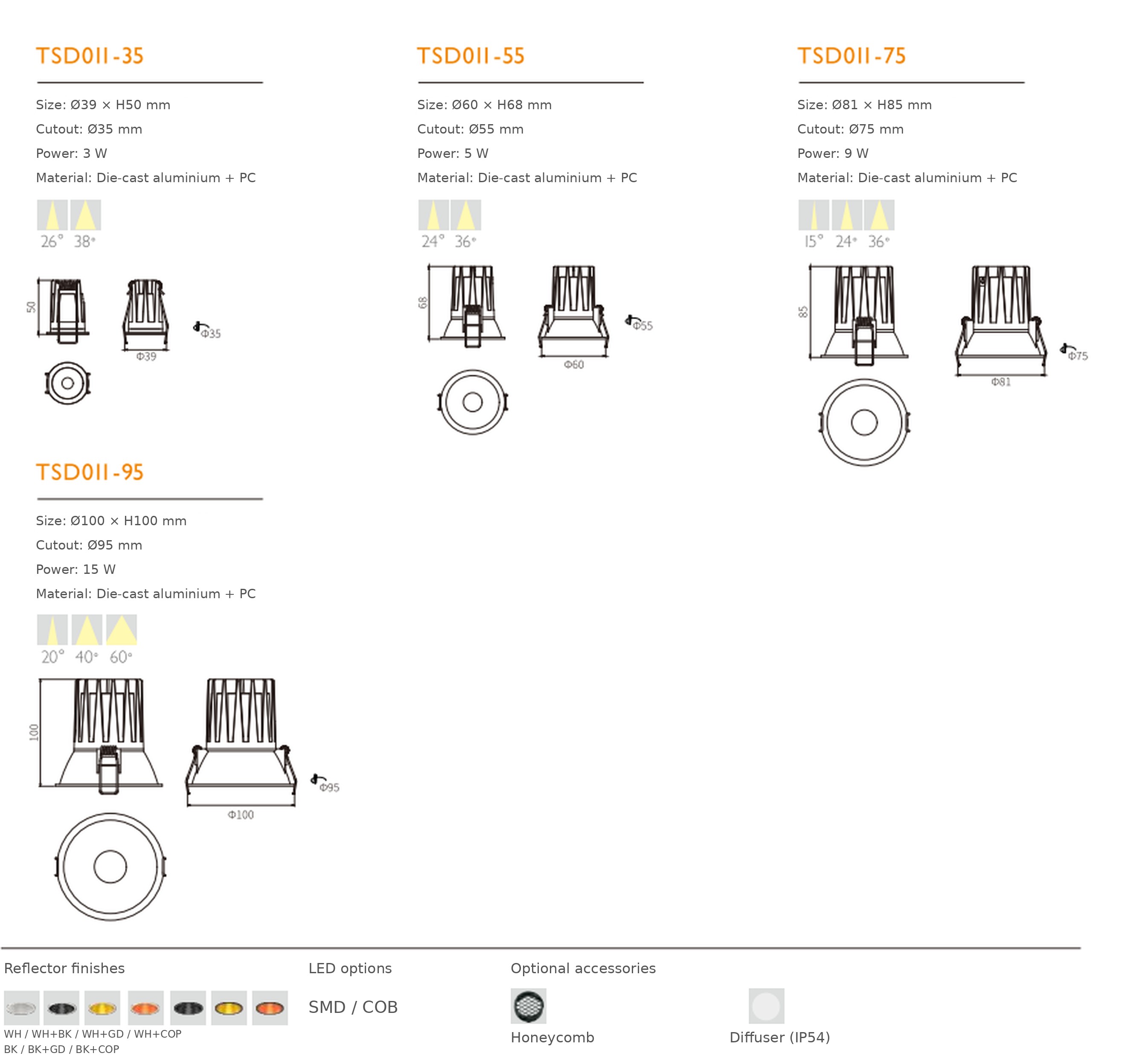

Model Specifications
• TSD011-35: 3W; Ø39 × H50 mm; ceiling cutout Ø35 mm; beam angles 26° / 38°.
• TSD011-55: 5W; Ø60 × H68 mm; ceiling cutout Ø55 mm; beam angles 24° / 36°.
• TSD011-75: 9W; Ø81 × H85 mm; ceiling cutout Ø75 mm; beam angles 15° / 24° / 36°.
• TSD011-95: 15W; Ø100 × H100 mm; ceiling cutout Ø95 mm; beam angles 20° / 40° / 60°.

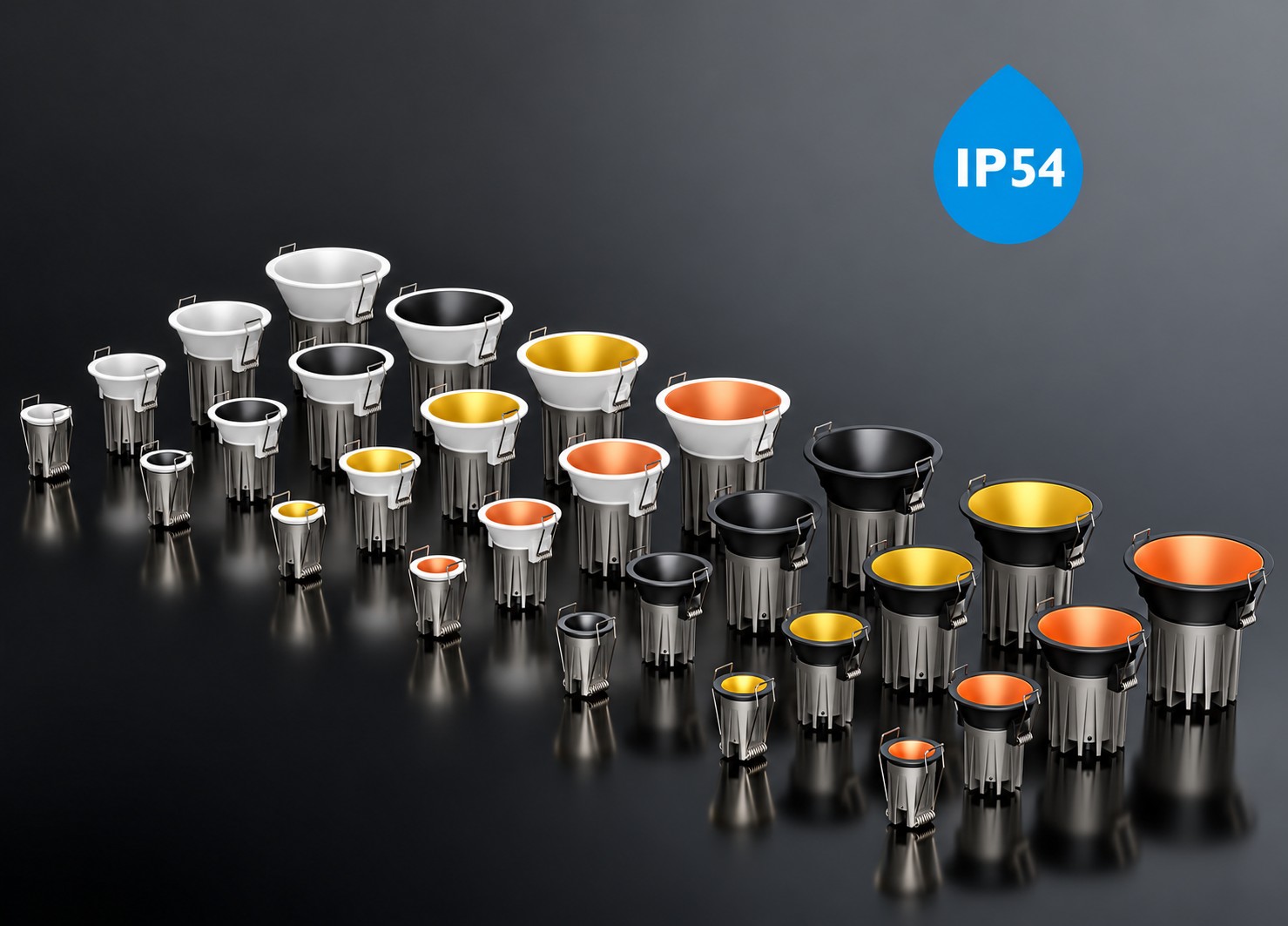

Finish Options
Available trim and reflector combinations include:
• White trim with white, black, gold or copper reflector.
• Black trim with black, gold or copper reflector.
These finish options refer to the appearance of the fixture and reflector.
LED and Accessory Options

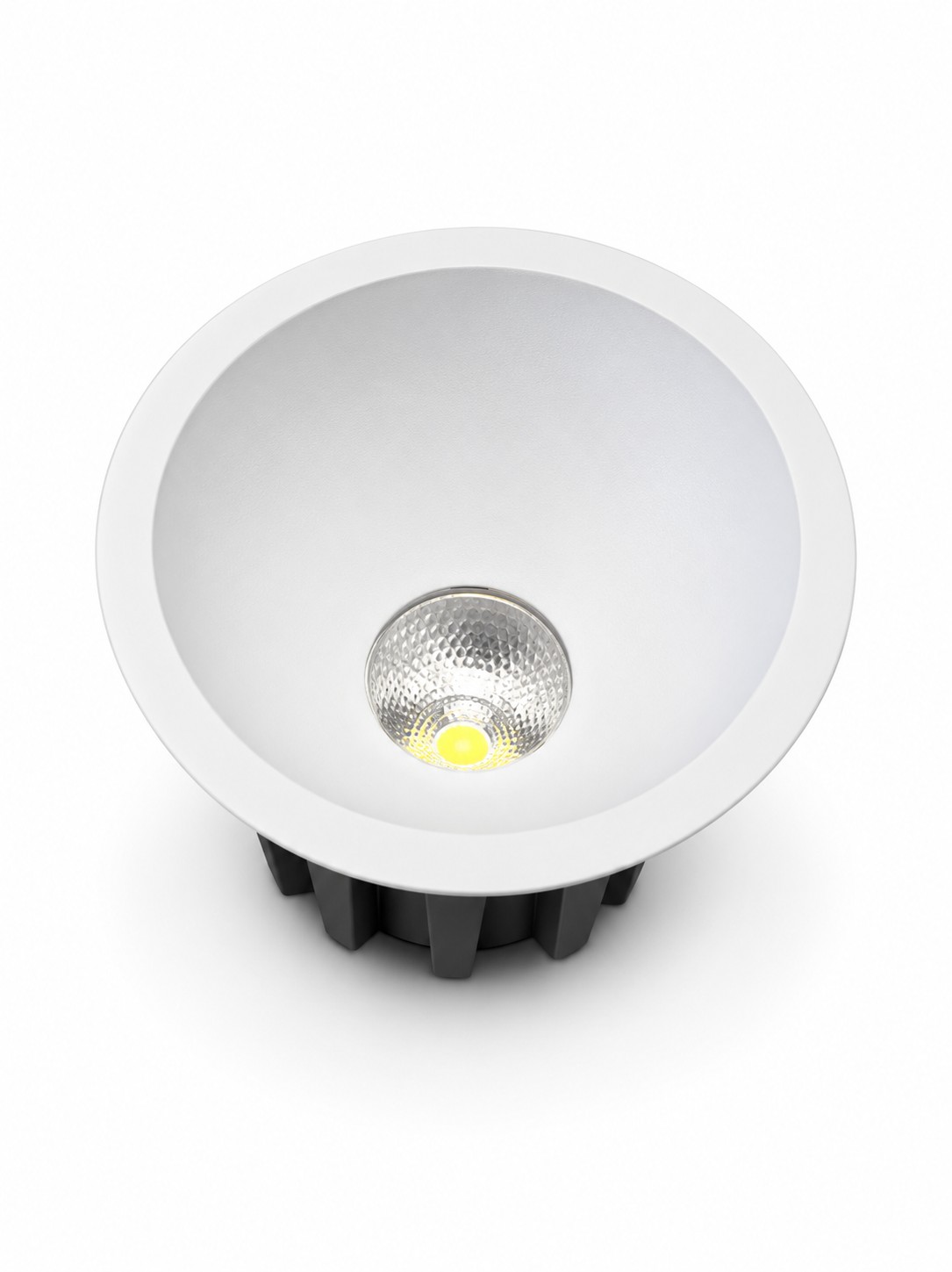

• SMD or COB LED configurations.
• Optional honeycomb accessory.
• Optional diffuser configuration, listed as IP54 in the supplied catalogue.
Confirm the selected optical configuration and applicable IP rating when ordering.
Applications
Suitable for hotel interiors, retail displays, restaurants, reception areas and commercial ceiling lighting. Multiple sizes, beam angles and reflector finishes help coordinate lighting with different interior designs.
