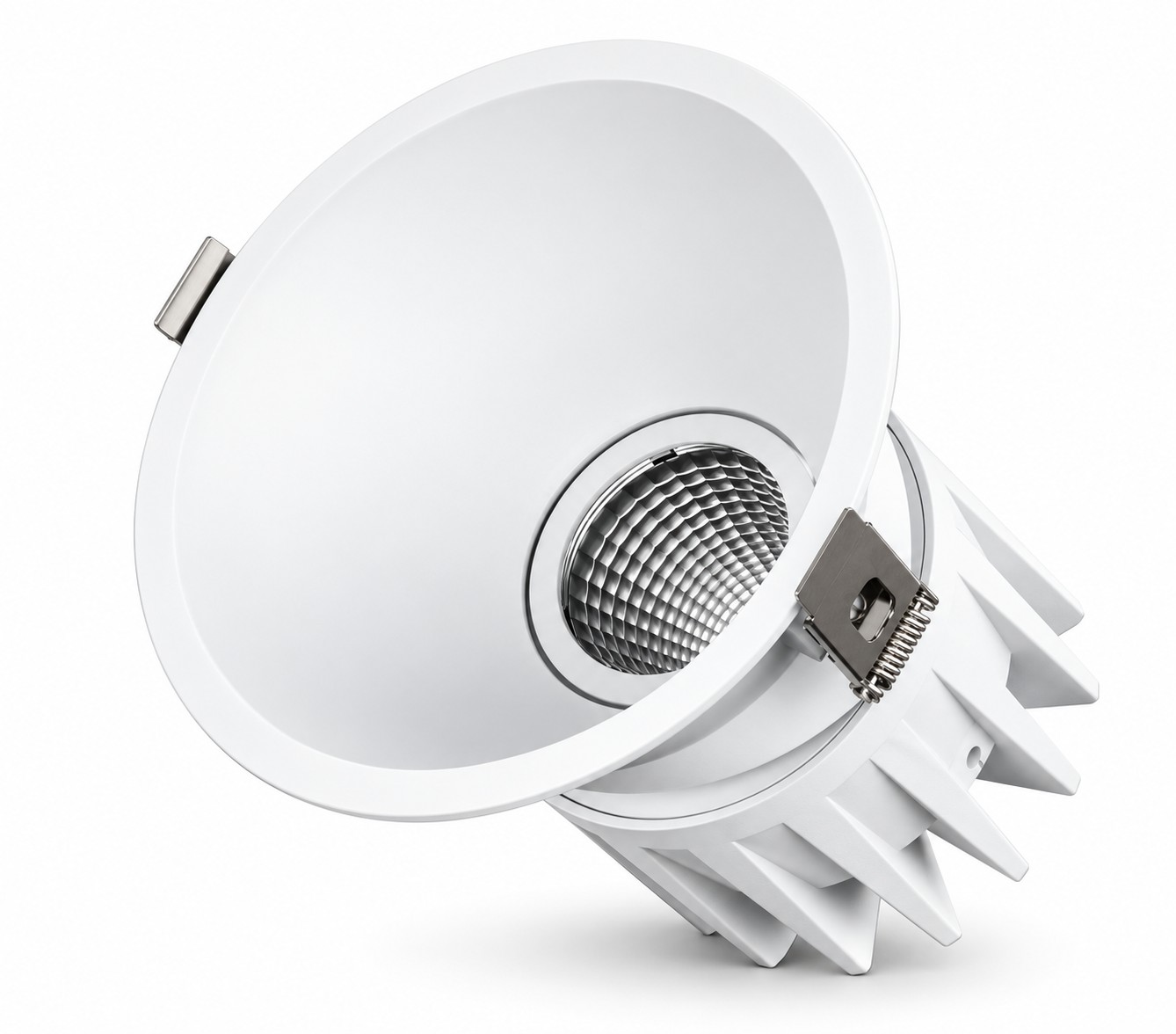

TSD013 Series Deep Recessed Adjustable LED Spotlight

The KONS TSD013 series combines a deep reflector with an adjustable light head for directional accent lighting. Its recessed optical design shields the light source, while the adjustable head allows light to be directed towards displays, artwork and interior features.

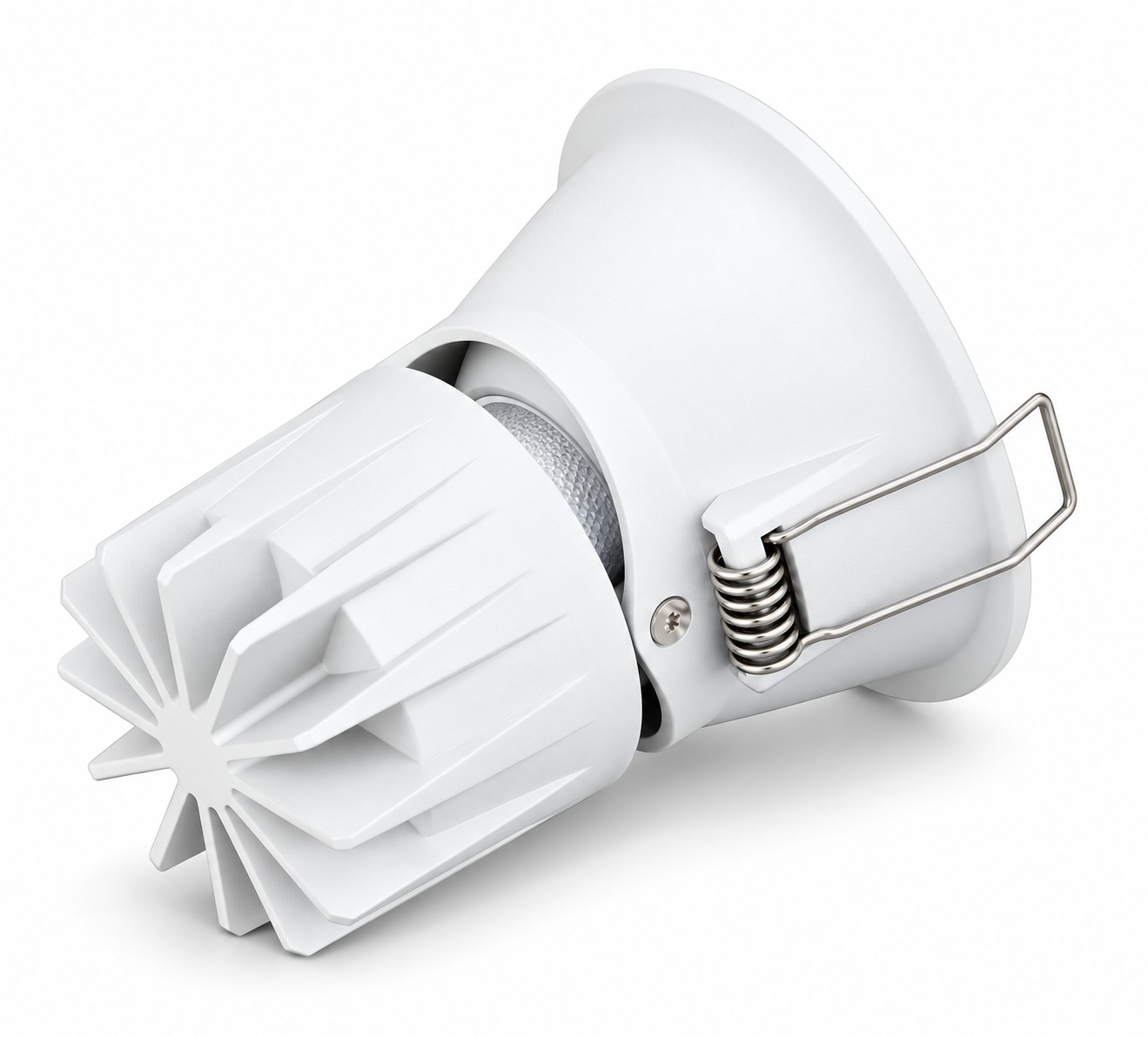

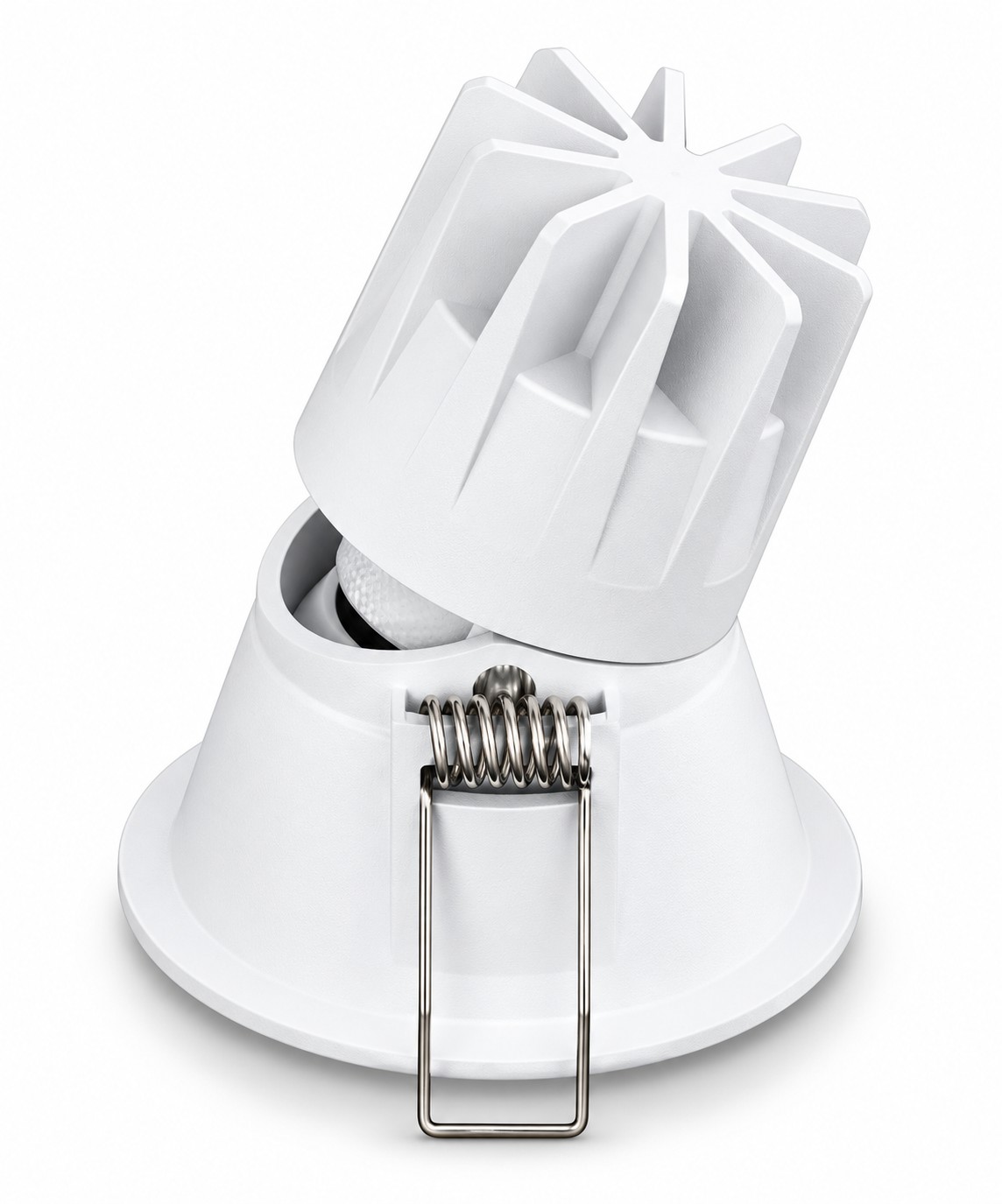

Die-cast aluminium construction, a finned heat sink and spring mounting clips provide a practical solution for recessed ceiling installations in hotels, retail spaces and commercial interiors.

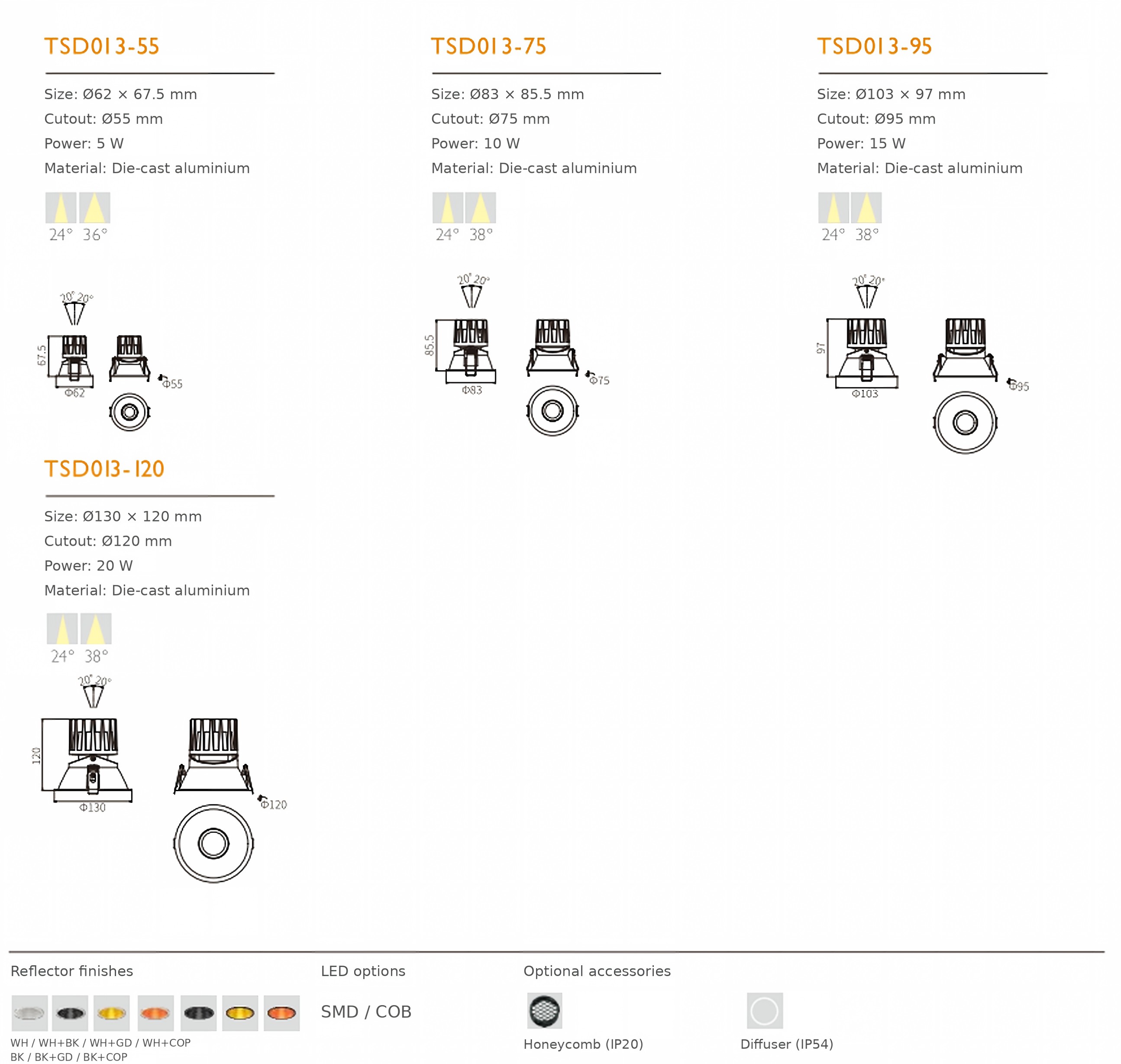

Model Specifications

• TSD013-55: 5W; Ø62 × H67.5 mm; ceiling cutout Ø55 mm; beam angles 24° / 36°.
• TSD013-75: 10W; Ø83 × H85.5 mm; ceiling cutout Ø75 mm; beam angles 24° / 38°.
• TSD013-95: 15W; Ø103 × H97 mm; ceiling cutout Ø95 mm; beam angles 24° / 38°.
• TSD013-120: 20W; Ø130 × H120 mm; ceiling cutout Ø120 mm; beam angles 24° / 38°.

Configuration Options

• SMD or COB LED configurations.
• Reflector finish combinations: white, white with black, white with gold, white with copper, black, black with gold, and black with copper.
• Optional honeycomb accessory.
• Optional diffuser configuration.

The supplied catalogue lists IP20 for the honeycomb configuration and IP54 for the diffuser configuration. Confirm the selected configuration and applicable rating when ordering.

Applications

Suitable for hotel rooms, reception areas, retail displays, restaurants and other commercial spaces requiring recessed directional lighting.
