The KONS NMW-TD deep recessed LED downlight series combines white trim, selectable reflector finishes and a finned aluminium housing. Five sizes from 5W to 30W, Ra90 colour rendering and 15°, 24° or 36° beam options provide flexibility for hotel, retail and commercial interior lighting.

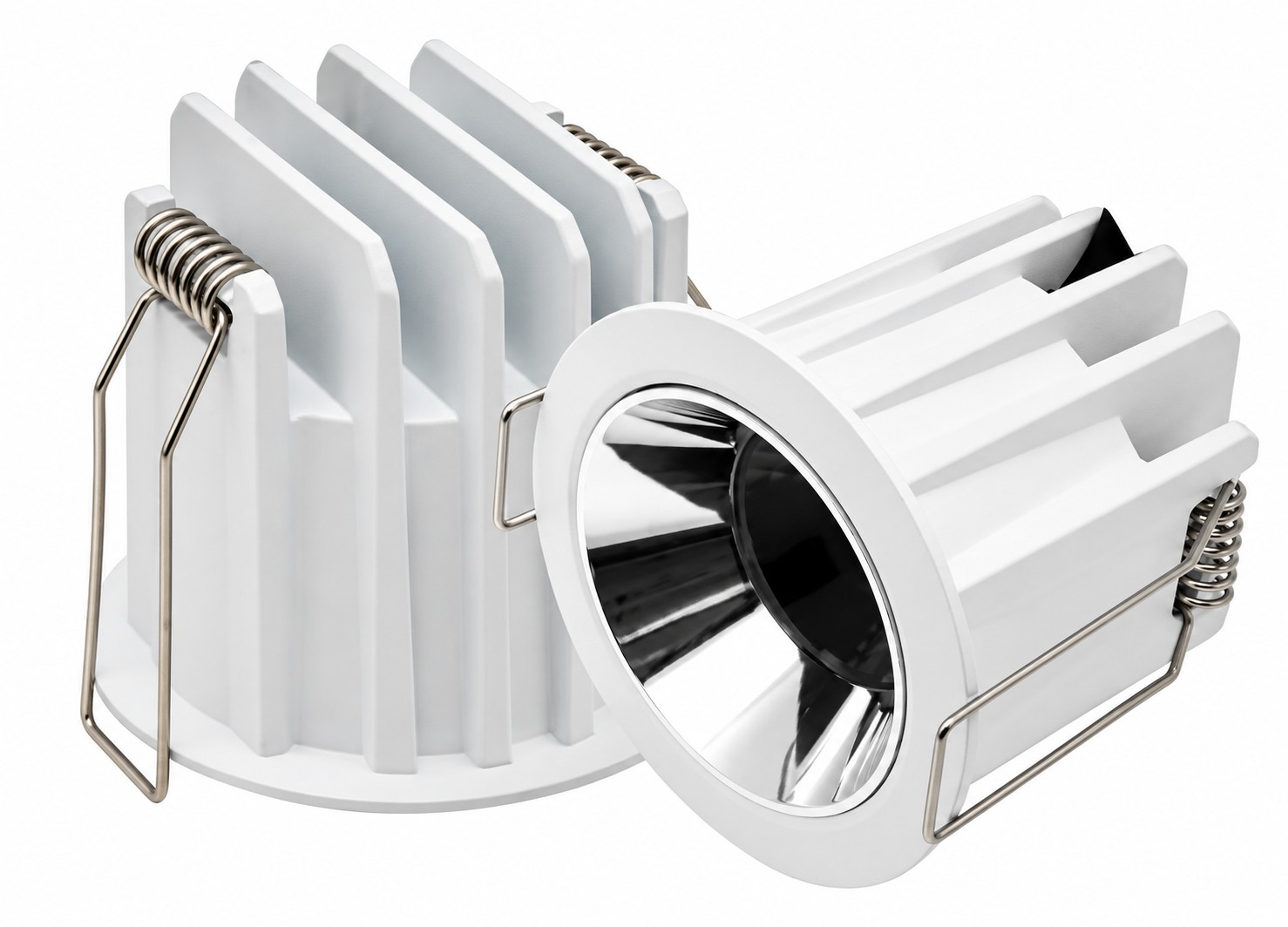

KONS NMW-TD Deep Recessed LED Downlight Series
The NMW-TD series features a recessed light source, a deep reflector and a compact round trim for commercial ceiling lighting. Five fixture sizes allow project buyers to select the power and ceiling cutout that suit their lighting layout.
Key Features
• Five power options: 5W, 9W, 12W, 20W and 30W
• Colour rendering index: Ra90
• Die-cast aluminium housing with cooling fins
• White fixture finish
• Reflector finish options: GB, SL and WH
• Beam angle options: 15°, 24° and 36°
• Fixed colour temperature options: 2700K, 3000K, 4000K and 5000K
• Tunable-white option: 2700K–6000K, subject to compatible driver configuration
• Recessed installation with spring clips

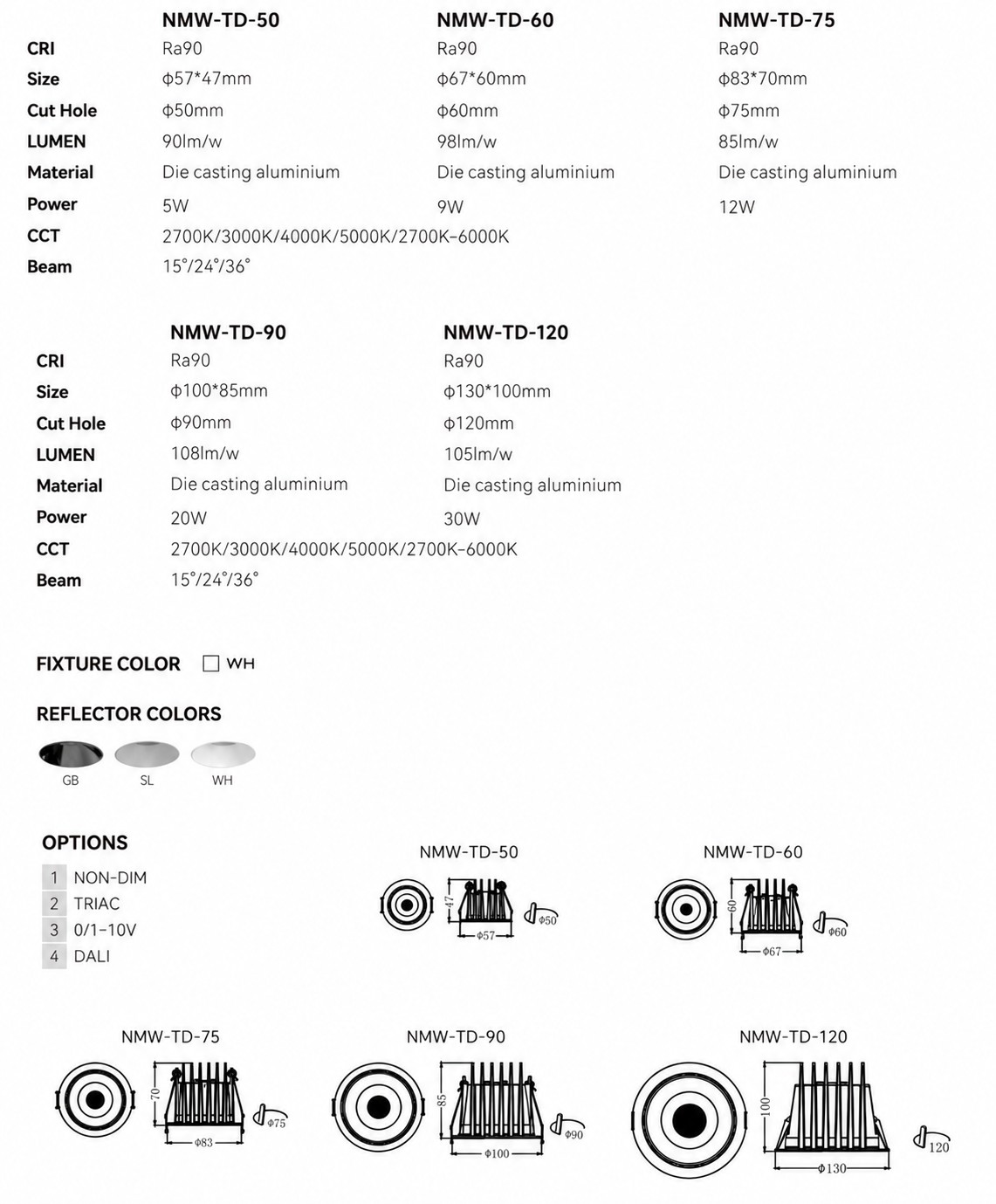

Model Specifications
NMW-TD-50
Power: 5W
Dimensions: Ø57 × 47mm
Ceiling cutout: Ø50mm
Luminous efficacy: 90 lm/W
NMW-TD-60
Power: 9W
Dimensions: Ø67 × 60mm
Ceiling cutout: Ø60mm
Luminous efficacy: 98 lm/W
NMW-TD-75
Power: 12W
Dimensions: Ø83 × 70mm
Ceiling cutout: Ø75mm
Luminous efficacy: 85 lm/W
NMW-TD-90
Power: 20W
Dimensions: Ø100 × 85mm
Ceiling cutout: Ø90mm
Luminous efficacy: 108 lm/W
NMW-TD-120
Power: 30W
Dimensions: Ø130 × 100mm
Ceiling cutout: Ø120mm
Luminous efficacy: 105 lm/W
Driver and Control Options
• Non-dimmable
• TRIAC dimming
• 0/1–10V dimming
• DALI
Select the appropriate driver for the required control system. Confirm compatibility for the selected model and colour temperature configuration before ordering.
Applications
Hotel guest rooms, corridors, reception areas, retail stores, showrooms and commercial interiors.
Project Enquiries
Please specify the model, quantity, colour temperature, beam angle, reflector finish and dimming requirements when requesting a quotation.
